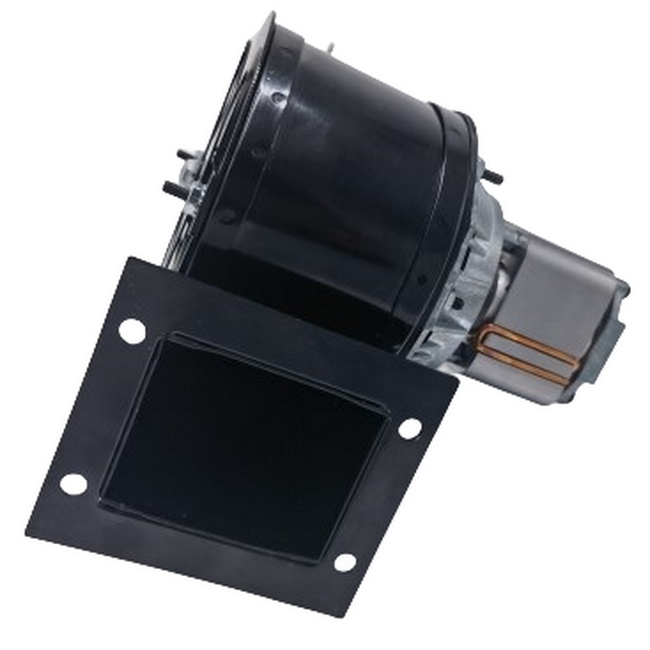

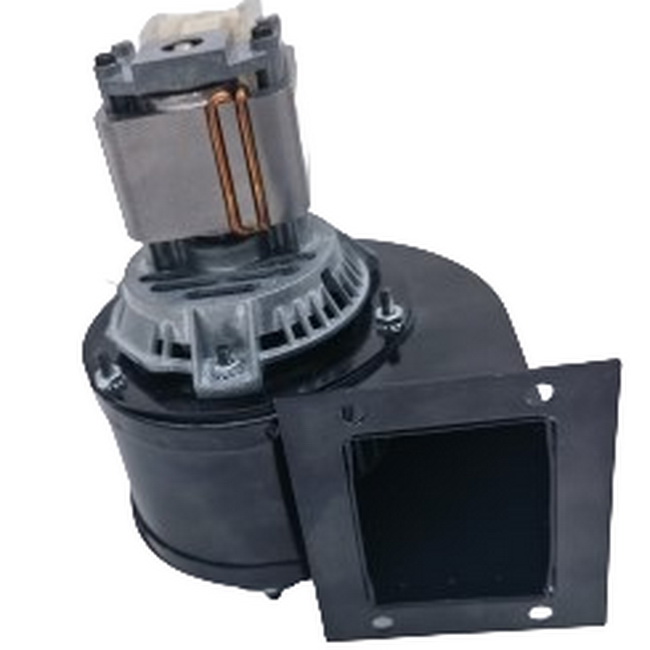

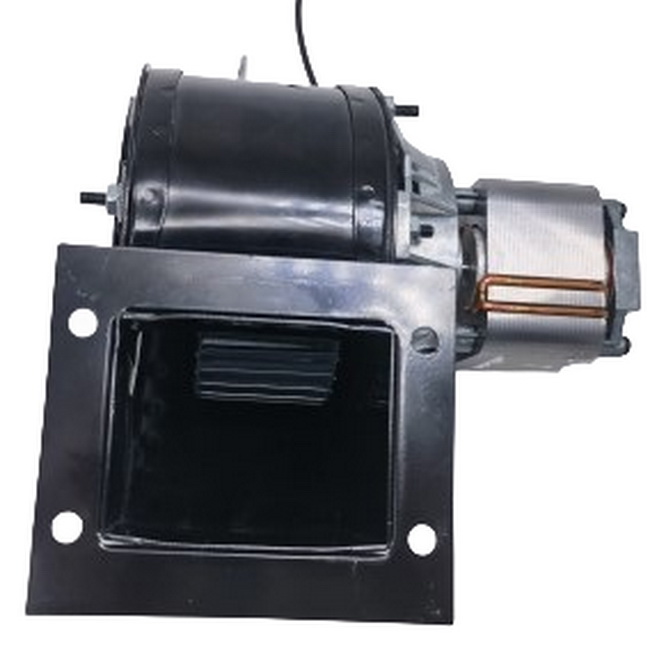

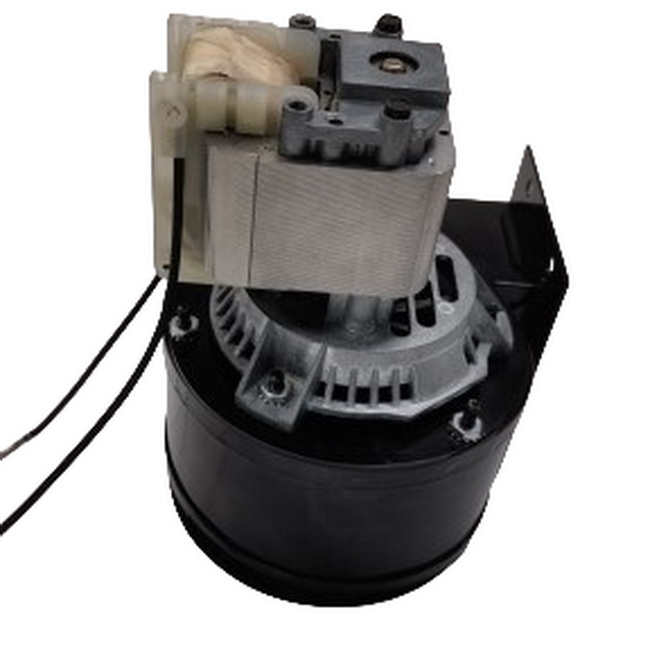

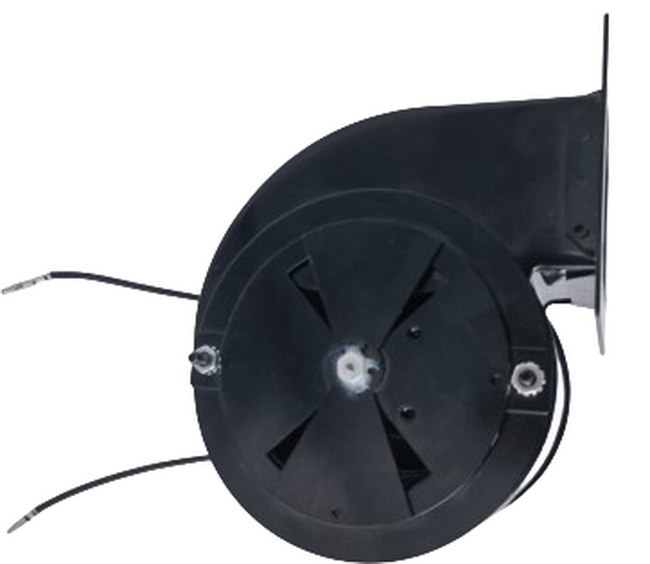

MH6038-38017
Description
FOR MECHANICAL AND FAN DUTY APPLICATIONS
Features
1.Rated Voltage/Frequency：230V50/60Hz
2.Current（A):0.45/0.35A
3.Input Power（W）:65
4.Speed（RPM):3000
5.Hi-Pot TEST:1800vac50Hz,3mA,1S
6.Bearing Type：NMB BALL BEARING
7.Insulation Class:H
8.Out Put Torque:7.8OZ.in @2800RPM
9.Protect method： TP
10.Application:MECHANICAL AND FAN DUTY APPLICATIONS
11.Agency:ETL/CE/CCC
