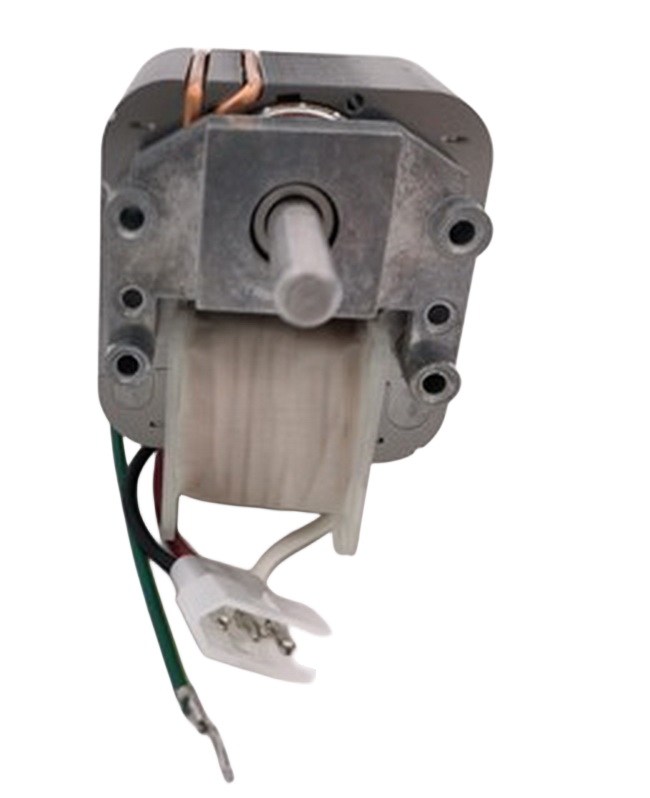

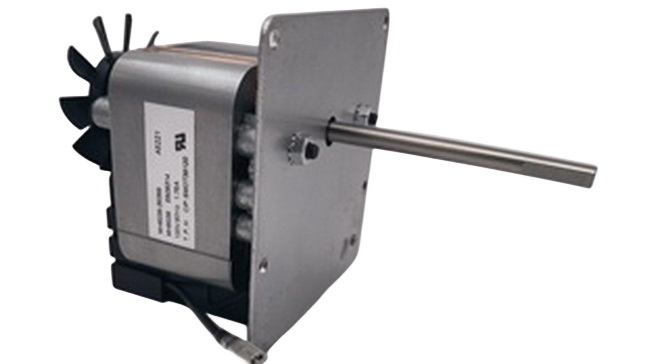

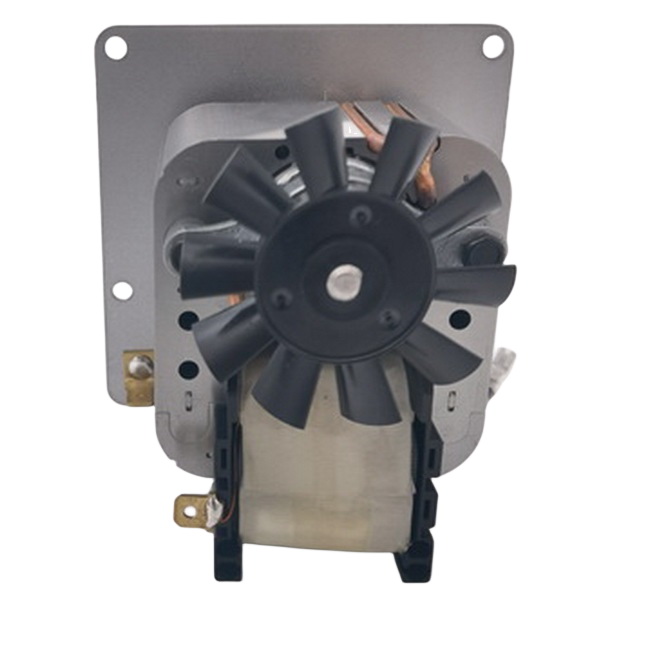

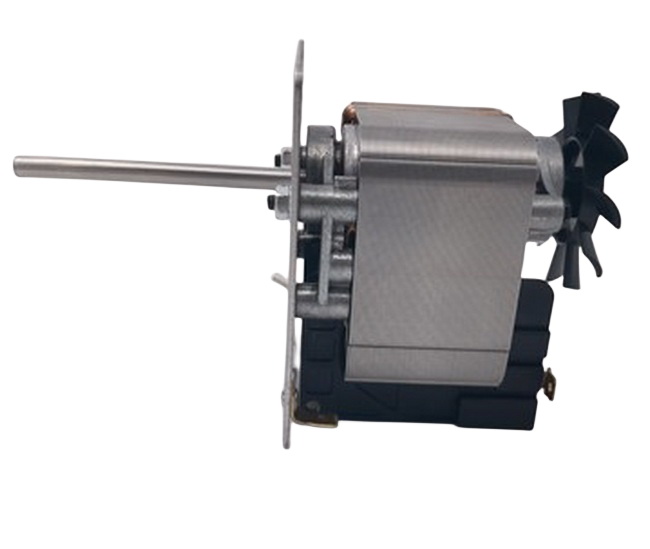

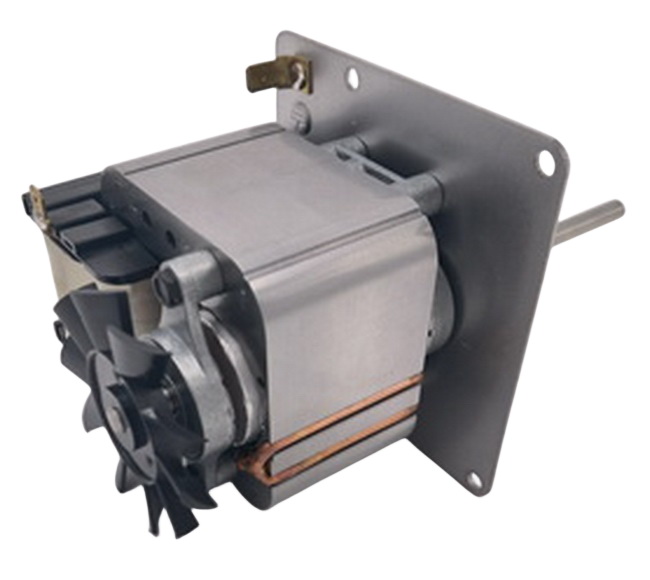

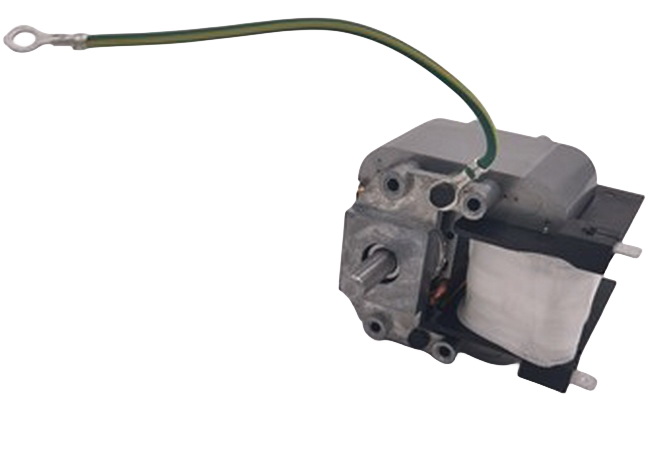

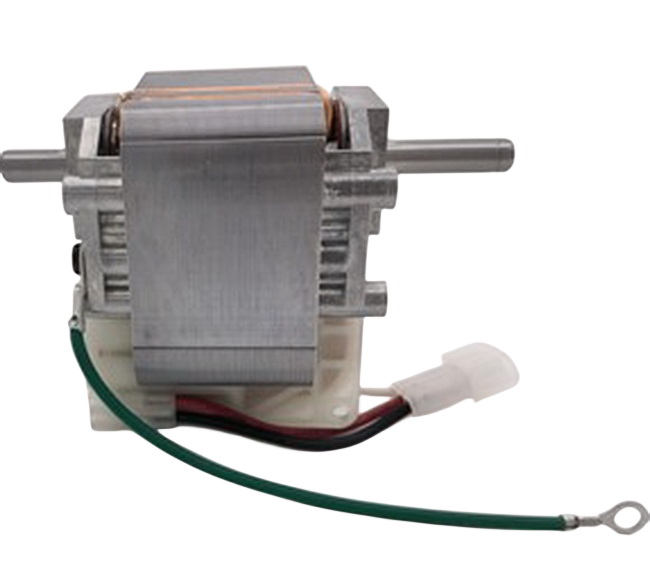

MH6038
Description
2.38 INCHES C-FRAME HIGH EFFICIENCY MOTOR FOR MECHANICAL AND FAN DUTY APPLICATIONS
Features
1. Rated Voltage/Frequency：115V/60Hz
2. Current（A):1.13A
3. Input Power（W）:68W
4. Speed（RPM):3000
5．Hi-Pot TEST:1500vac50Hz,1mA,1S
6. Bearing Type：NMB BALL BEARING
7. Insulation Class:H
8 OUT PUT TORQUE:9OZ.in @2800RPM
9. Protect method： TP
10. Application:MECHANICAL AND FAN DUTY APPLICATIONS
11. Agency:ETL
