- Cooling Fan Motor

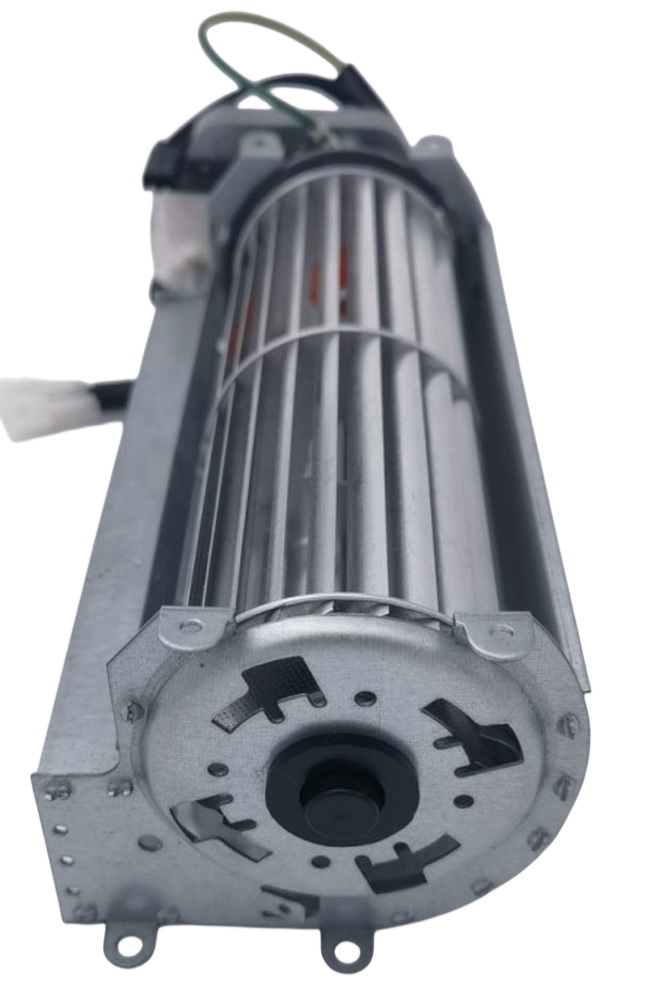

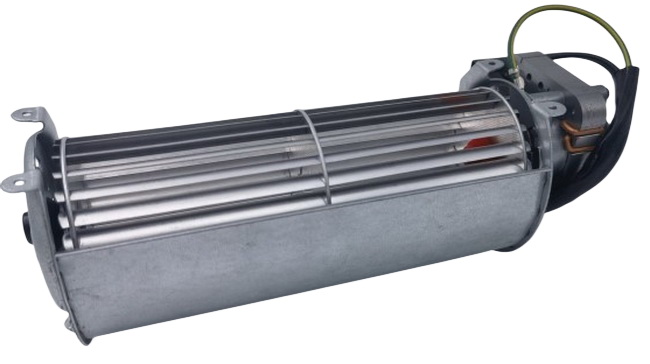

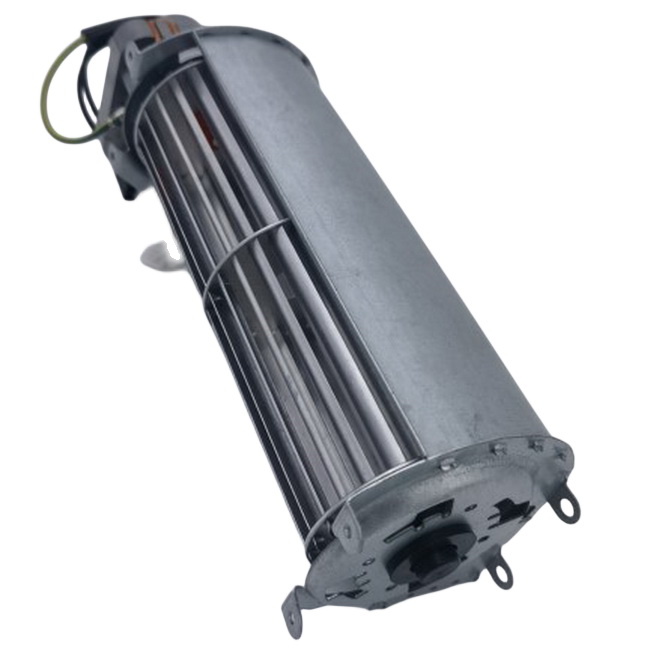

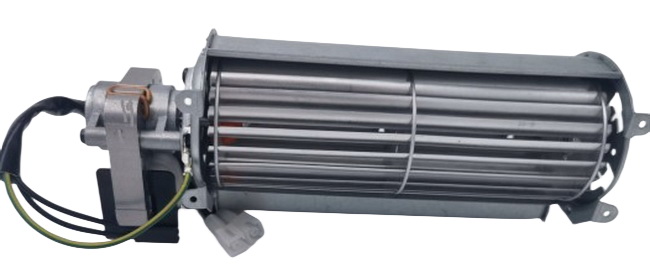

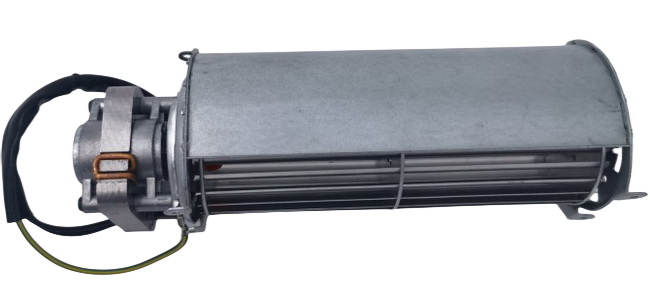

MH6013-13605
Description
FOR PELLET STOVE, OVEN
Features
1. Rated Voltage/Frequency：120V/60Hz
2. Current（A):0.38
3. Input Power（W）:20
4. Speed（RPM):1200
5．Hi-Pot TEST:1500V50Hz,3mA,1S
6.Start Voltage:81v/60hz
7. Bearing Type:sleeve BEARING
8 Wind Speed(m/s):5.6
9. Air Volume（CFM):79
10. Protect method： ZP
11. Application: PELLET STOVE, OVEN
12. Agency:ETL
13.VIBRATION TEST:0.2cm/S MAX AT CENTER OF HOUSING BACKSIDE
14. Insulation Class: H
