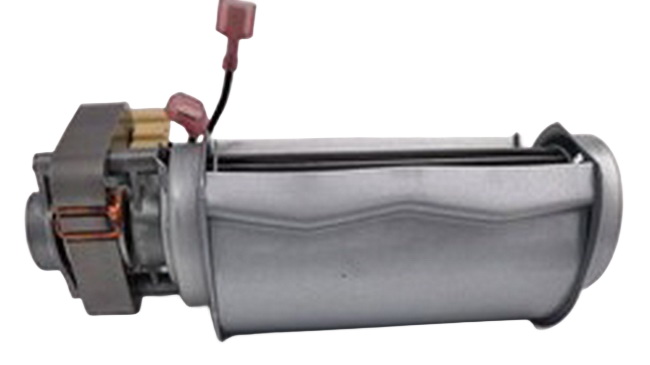

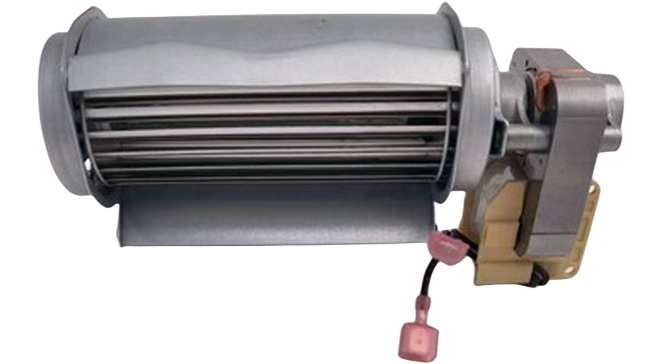

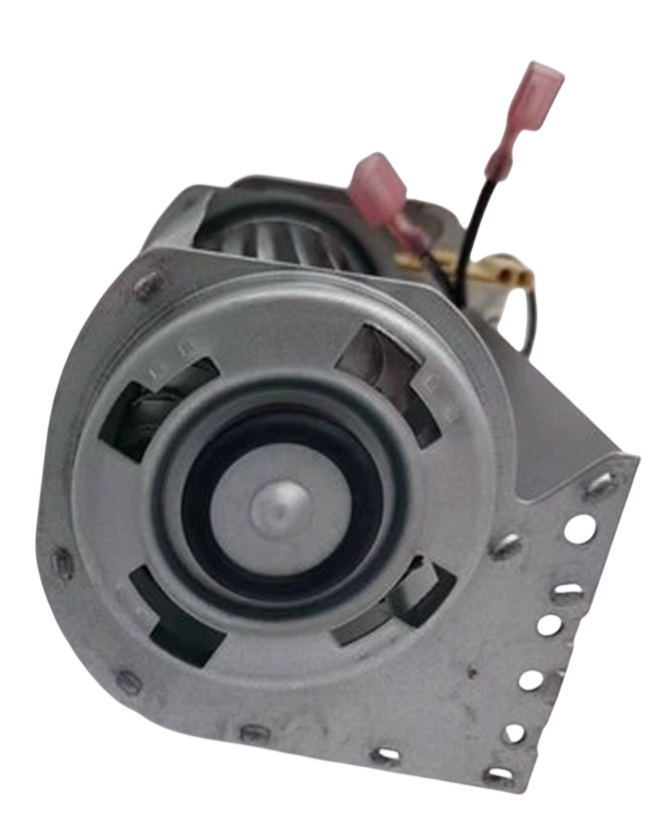

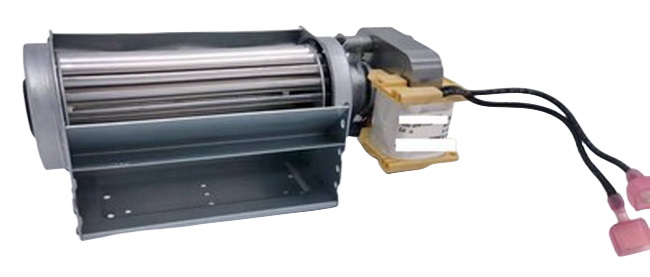

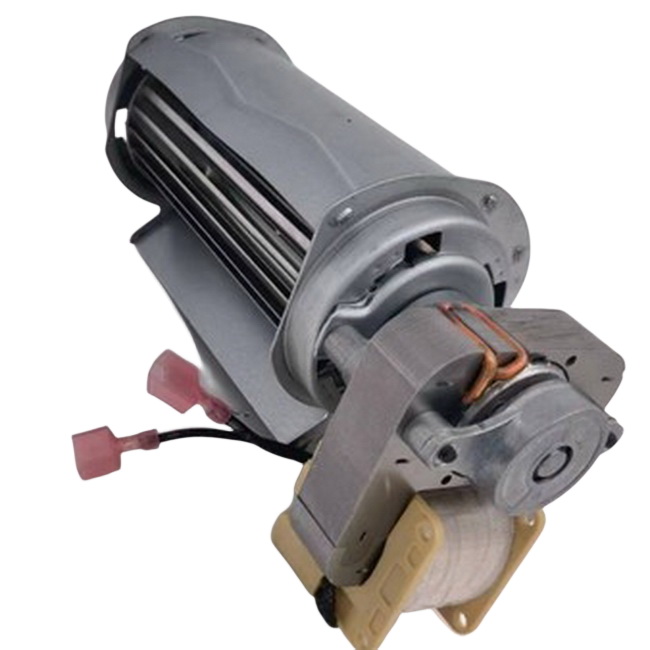

MH6016-16584
Description
FOR PELLET STOVE, OVEN
Features
1. Rated Voltage/Frequency：115V/60hz
2. Current（A):0.5
3. Input Power（W）:27
4. Speed（RPM):2790
5．Hi-Pot TEST:1500Vac 50Hz,1mA,1S
6.Start Voltage: 81V/60Hz
7. Insulation Class:H
8 Wind Speed(m/s):9
9. Air Volume（CFM):68
10. Protect method： TP
11. Application:Pellet Stove, OVEN
12. Agency:UL
13.VIBRATION TEST:0.15cm/S MAX AT CENTER OF HOUSING BACKSIDE
14. Bearing Type:BALL BEARING
