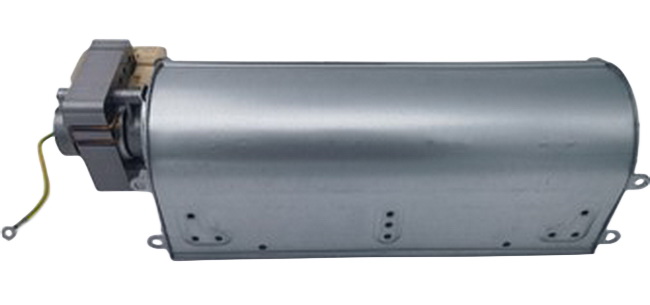

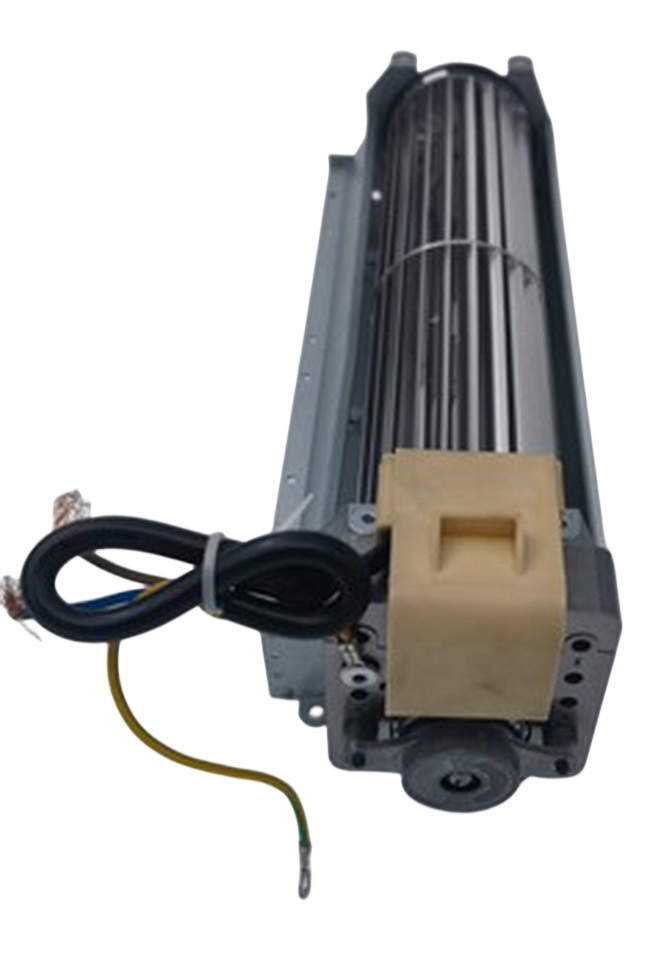

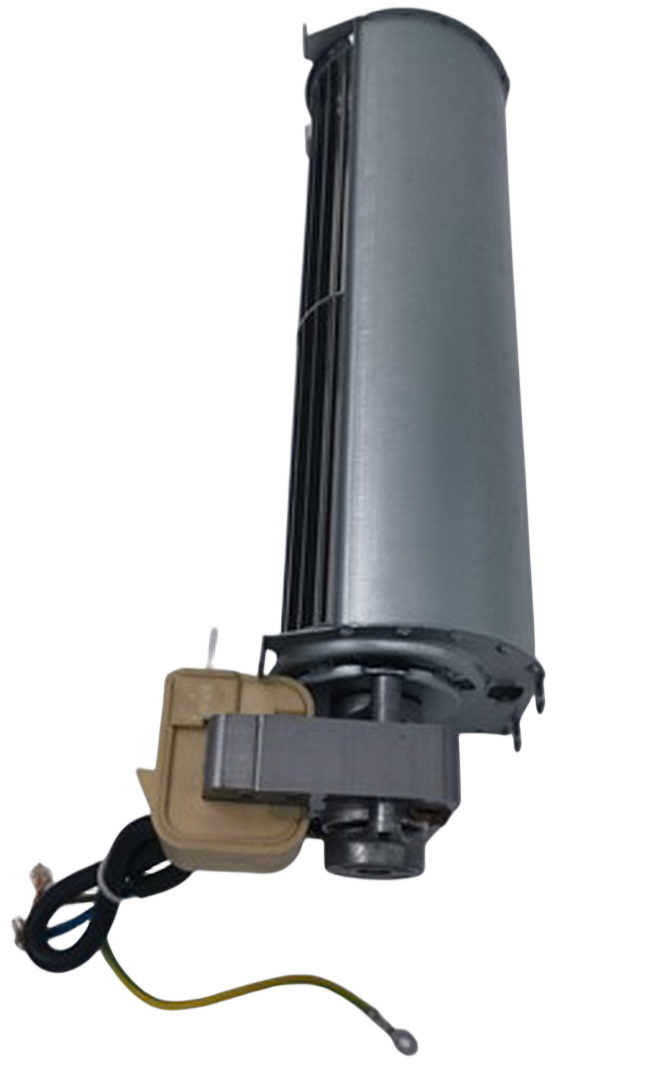

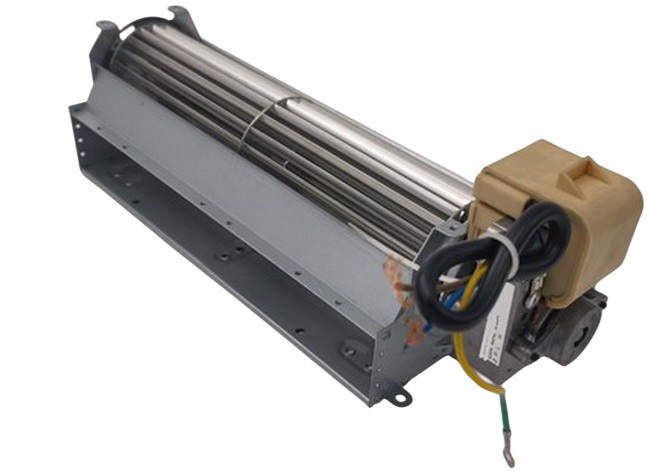

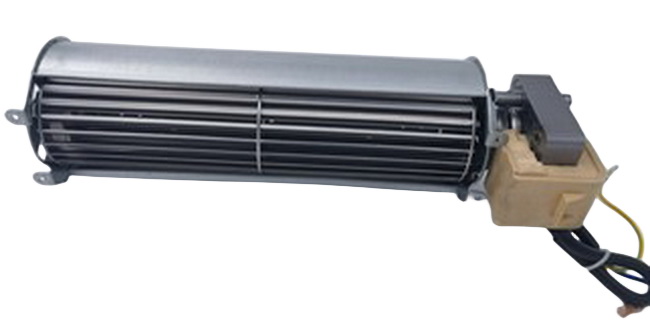

MH6019-19054
Description
FOR PELLET STOVE/OVEN/LAB EQUIPMENT
Features
1. Rated Voltage/Frequency：230v/50hz
2. Current（A):0.35
3. Input Power（W）:35
4. Speed（RPM):1850
5．Hi-Pot TEST:1800Vac 50Hz,3mA,1S
6.Start Voltage: 168V/50Hz
7. Bearing Type:NMB BALL BEARING
8. Insulation Class:H
9 Wind Speed(m/s):5.6
10. Air Volume（CFM):125
11. Protect method：TP
12. Application:Pellet Stove, OVEN, Lab Equipment
13. Agency:ETL/CE/CCC
