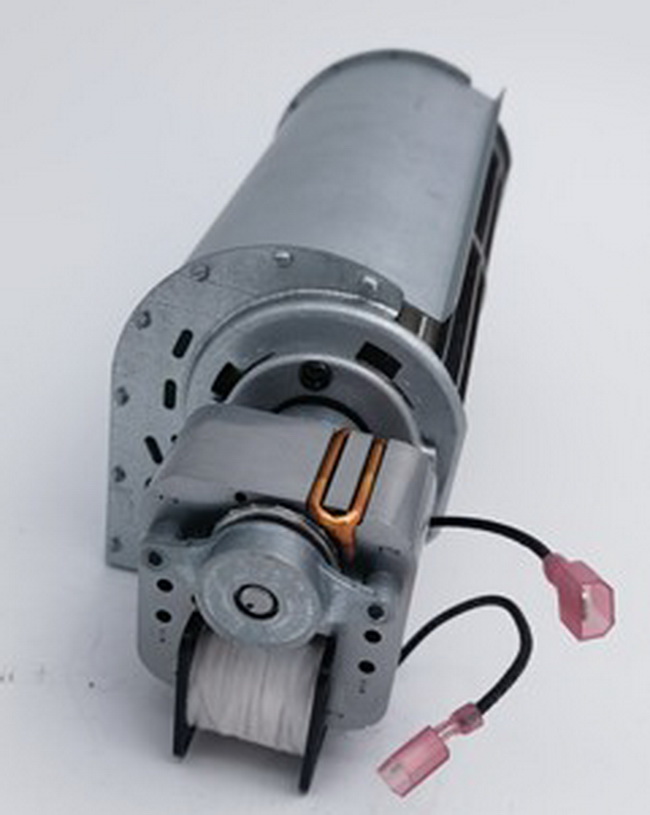

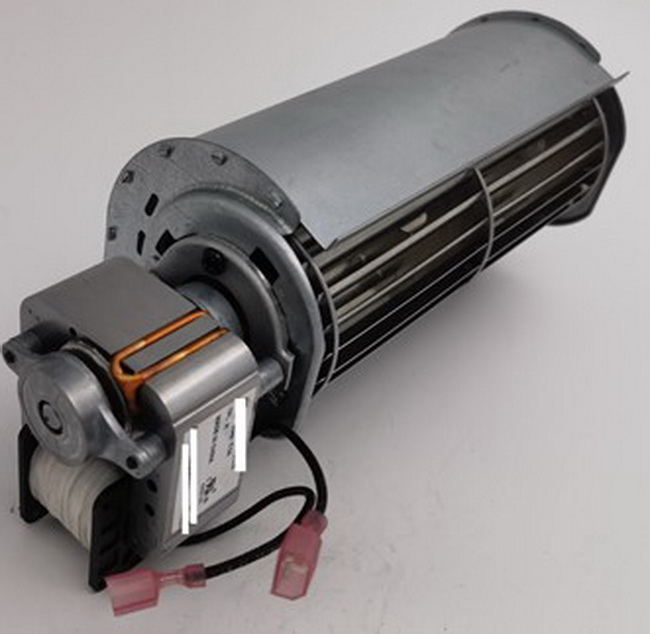

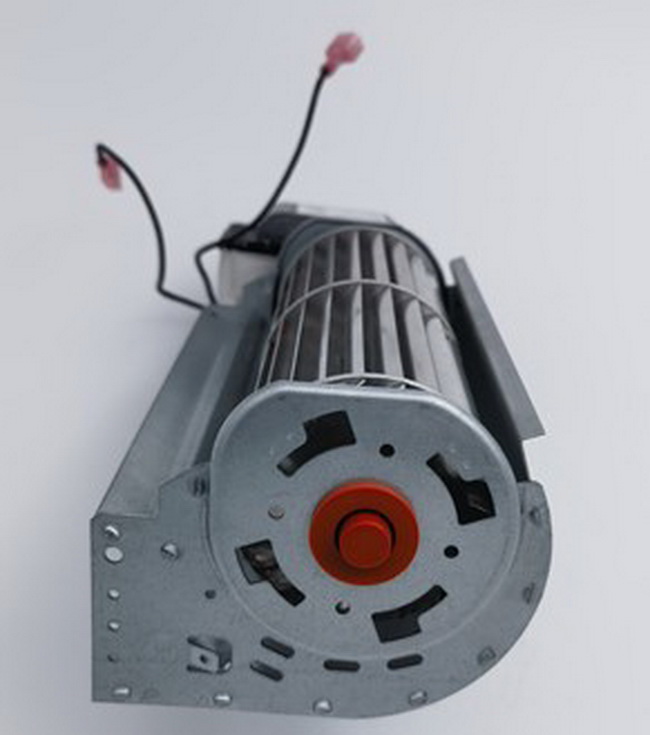

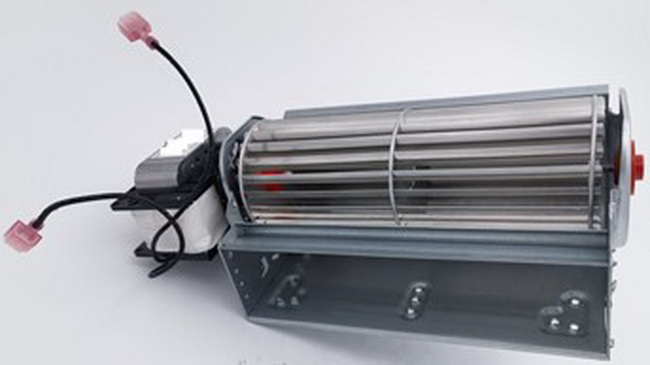

MH6029-29582
Description
FOR PELLET STOVE, OVEN
Features
1.Rated Voltage/Frequency：115V/60Hz
2.Current（A):0.64
3.Input Power（W）:40
4.Speed（RPM):2300
5.Hi-Pot TEST:1500V50Hz,3mA,1S
6.Start Voltage:81v/60hz
7.Insulation Class: H
8 Wind Speed(m/s):8.3
9.Air Volume（CFM):130
10.Protect method： TP
11.Bearing Type:BALL BEARING
12.Application: PELLET STOVE, OVEN
13.Agency:UL
14.VIBRATION TEST:0.15cm/S MAX AT CENTER OF HOUSING BACKSIDE
