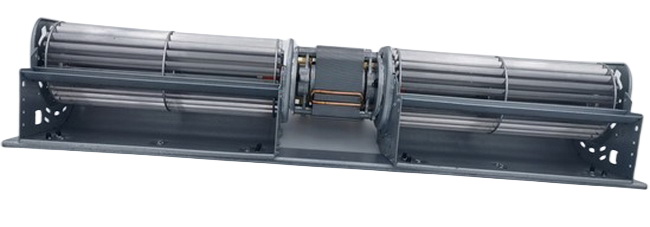

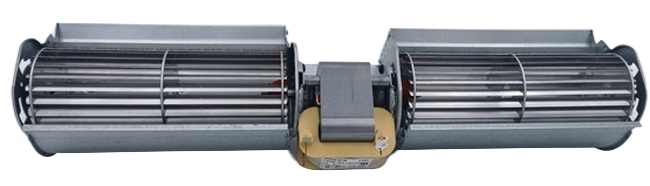

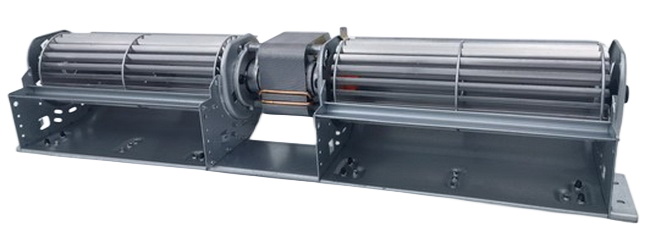

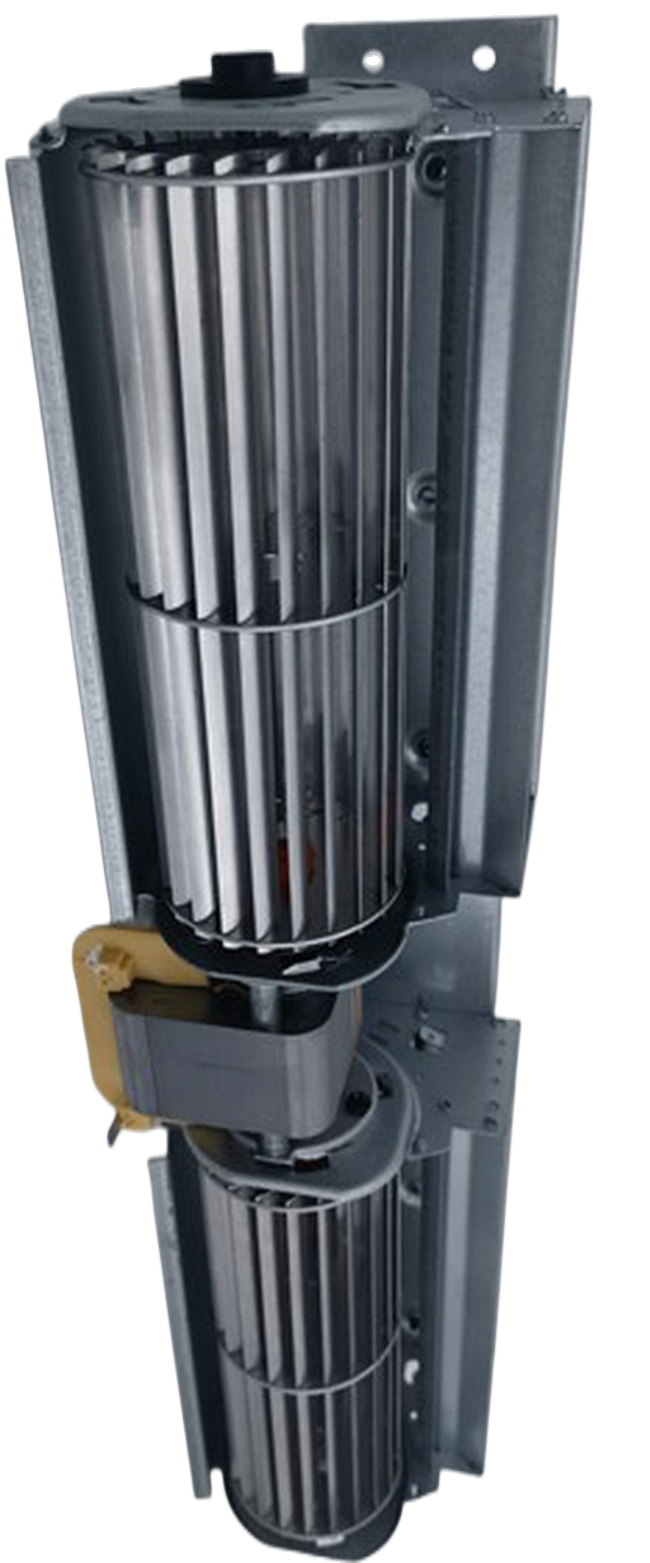

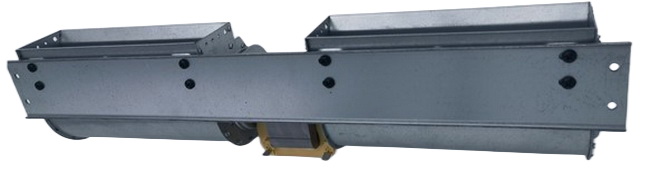

MH6038-38156
Description
FOR STOVE
Features
1.Rated Voltage/Frequency：115V/60Hz
2.Current（A): High 1.5A; Low: 1.45A
3.Input Power（W）:High:90W; Low: 80W
4.Speed（RPM):High:1250RPM; Low: 1150RPM
5.Hi-Pot TEST:1500VAC 1mA,1S
6. Bearing Type:BALL BEARING
7. Insulation Class:H
8.Wind Speed(m/s):High:5.5m/s; Low: 5m/s
9.Air Volume（CFM):High: 96CFM;Low:87CFM
10.Protect method： TP
11.Application: STOVE
12.Agency: UL
