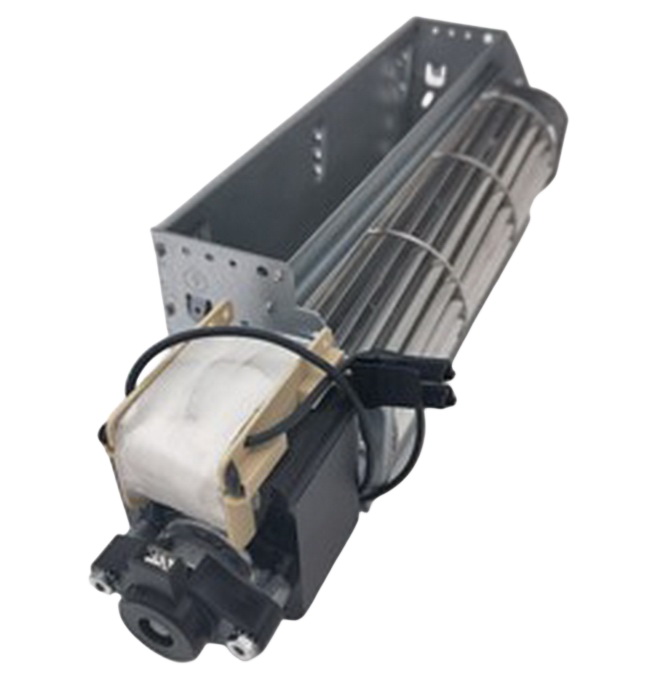

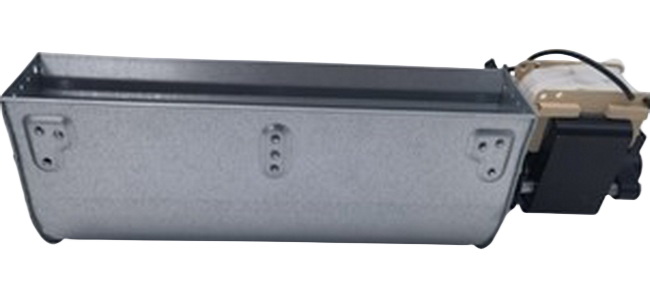

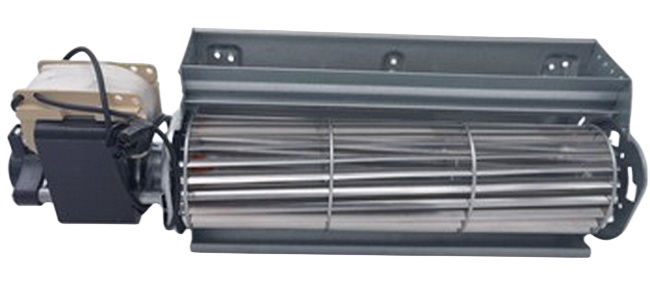

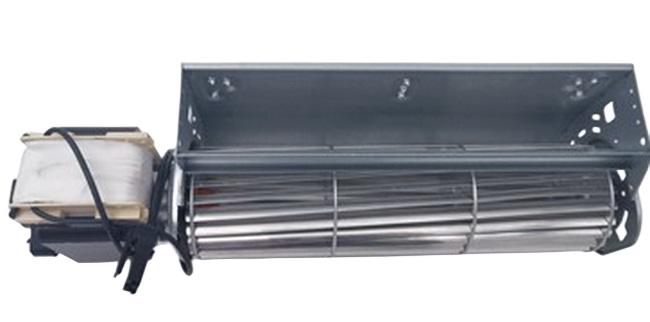

MH6038-38604
Description
FOR KITCHEN EQUIPMENT,PELLET STOVE
Features
1.Rated Voltage/Frequency：240V/60Hz
2.Current（A):0.56
3.Input Power（W）:72
4.Speed（RPM):2330
5.Hi-Pot TEST:1800V50Hz,3mA,1S
6.Start Voltage:168v/60hz
7.Insulation Class: H
8.Wind Speed(m/s):11.9
9.Air Volume（CFM):288
10.Protect method： TP
11.Vibration test:0.25cm/s
12.Bearing Type:BALL BEARING
13.Application: KITCHEN EQUIPMENT,PELLET STOVE
14.Agency:ETL
